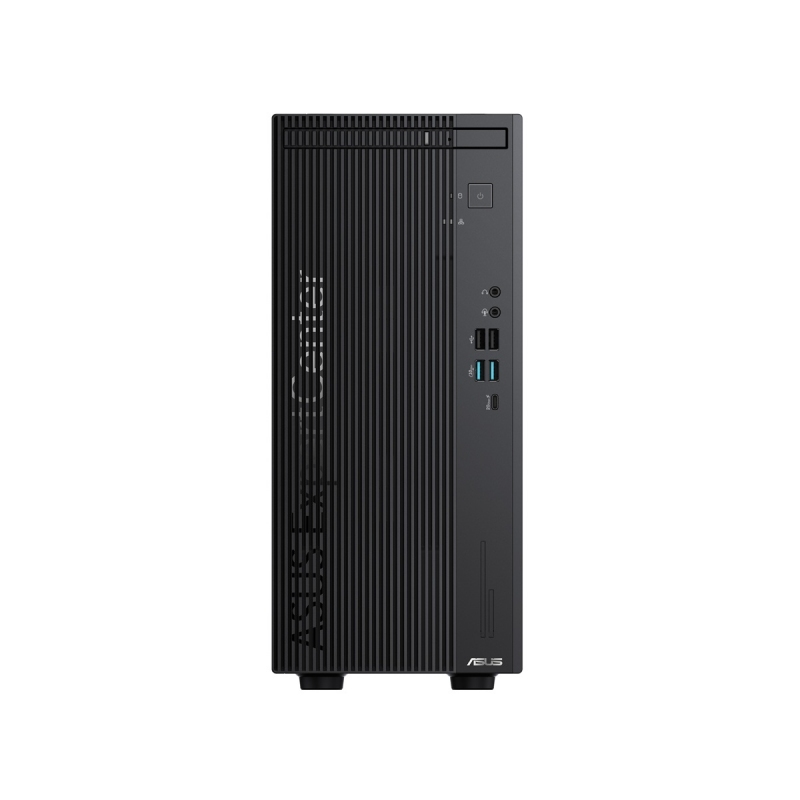

ASUS ExpertCenter D7 Mini tower - i5-14500/16GB/512GB SSD/DVD writ ...

Size
15L

Color
Black

Form Factor
Mini tower

Operating System
Windows 11 Pro - ASUS recommends Windows 11 Pro for business

Office
1-month trial for new Microsoft 365 customers. Credit card required.

Processor
Intel® Core™ i5-14500 Processor 2.6GHz (24MB Cache, up to 5.0GHz, 14 cores, 20 Threads)
N/A

Chipset
Intel® B760 Chipset

DIMM Memory
16GB DDR5 U-DIMM

Memory Speed
Memory speed is 5600MHz, but run at 4000~4400MHz.

Memory Max.
128GB

Integrated GPU
Intel® UHD Graphics 770

Storage
512GB M.2 2280 NVMe™ PCIe® 4.0 SSD

Optical Drive
DVD writer 8X

LAN
Intel WGI219V 10/100/1000 Mbps, non-vPro

Audio
High Definition 7.1 Channel Audio

Wireless
Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.4 Wireless Card

Power Supply
330W power supply (80+ Platinum, peak 660W)

Rear I/O Port
1x RJ45 Gigabit Ethernet
1x HDMI 1.4
1x VGA Port
1x Displayport 1.4
1x 7.1 channel audio (microphone, line-out, Line-in)
1x Kensington lock
1x Padlock loop
3x USB 2.0 Type-A
2x USB 3.2 Gen 1 Type-A
1x FLEX I/O port (DP1.4 HBR3)

Front I/O Port
1x Headphone
1x 3.5mm combo audio jack
2x USB 2.0 Type-A
1x USB 3.2 Gen 2 Type-C
2x USB 3.2 Gen 2 Type-A

Drive Bay
2.5"" x 1
3.5"" x 1"

Serial ATA
4 x SATA 6.0Gb/s ports

Expansion Slot(includes used)
1x PCIe® 4.0 x 16
2x PCIe® 3.0 x 1
1x M.2 2280 connector for storage
1x M.2 2280/2230 connector for storage
1x M.2 connector for WiFi
4x DDR5 U-DIMM slot

Keyboard & Mouse
Wired keyboard (USB)
Wired optical mouse (USB)

Accessory
Internal Speaker
1 x COM port
Intrusion cable (Intrusion Switch)
2.5"" HDD assembly kit

Dimension
(WxDxH) 15.50 x 29.60 x 34.70 cm (6.10" x 11.65" x 13.66")

Weight
06.00 kg (13.23 lbs)

My ASUS features
System diagnosis
Fan profile
AppDeals
Link to MyASUS

Built-in Apps
MyASUS

Adobe Creative Cloud Hard Bundle
One-Month Membership of Adobe Creative Cloud All Apps

Security
HDD User Password Protection and Security
Kensington Security Slot™(7x 3mm)
McAfee® 30 days free trial
Padlock loop
Trusted Platform Module (Firmware TPM)

Antivirus
McAfee® 30 days free trial

TPM
Trusted Platform Module (TPM) 2.0

Ecolabels & Compliances
EPEAT Gold
EPEAT Gold (selected SKU only)
*All ExpertCenter models are EPEAT Silver certified. Some models outperform to achieve EPEAT Gold certification. Contact local sales representative for details.
EPEAT Silver
Energy star 8.0
REACH
RoHS

Base Warranty
3Y Pick up/ return
