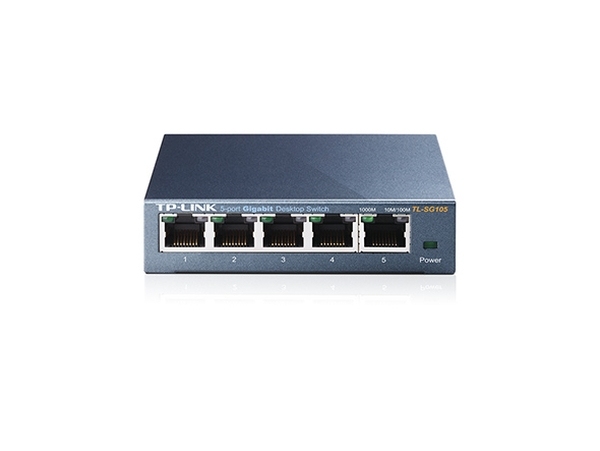

TP-Link TL-SG105 switch 5xLan 10/100/1000Mbps, kovový

5portový stolní switch 10/100/1000 Mbit/s
TL-SG105

5 portů 10/100/1000 Mbit/s RJ45s automatickým vyjednáváním podporující Auto MDI/MDIX
Řízení toku IEEE 802.3x zajišťuje spolehlivý přenos dat
Kovový kryt, stolní nebo nástěnné provedení
Podpora funkcí QoS (IEEE 802.1p) a IGMP snooping
Zapojení typu Plug and Play bez nutnosti konfigurace


HARDWARE FEATURES



Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

Interface
5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity
Fanless

Power Consumption
Maximum: 3.2W (220V/50Hz)

External Power Supply
External Power Adapter (Output: 9VDC / 0.6A)

LED Indicator
System Power
Link, Speed and activity indicators per port built into each RJ-45 port

Dimensions ( W x D x H )
3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)


PERFORMANCE



Packet Forwarding Rate
7.4Mpps

MAC Address Table
2K

Packet Buffer Memory
1Mb

Jumbo Frame
15KB


SOFTWARE FEATURES



Advanced Features
Green Technology, saving power up to 84%
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping

Transfer Method
Store and Forward


OTHERS



Certification
CE, FCC, RoHS

Package Contents
5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
