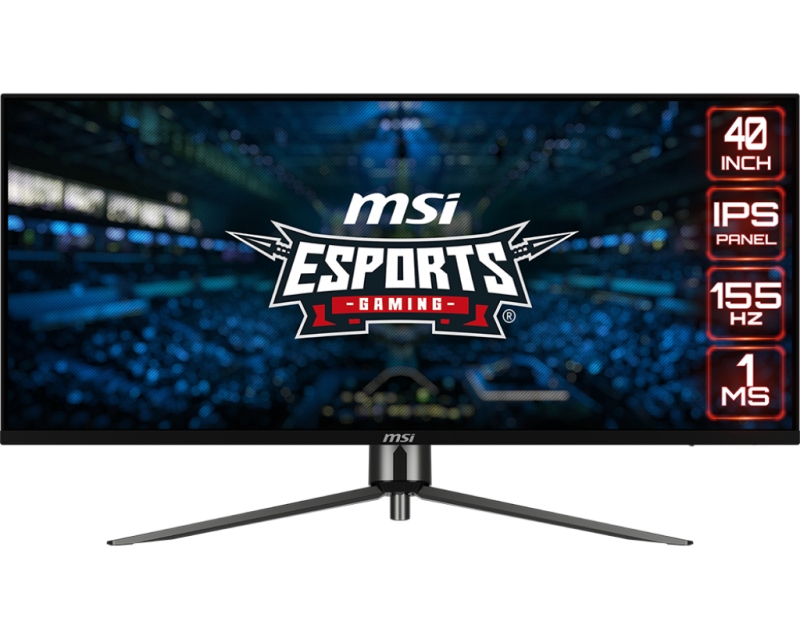

MSI Gaming monitor MAG401QR, 40" IPS/3440x1440 (UWQHD)/155Hz/1ms/ ...

MSI Gaming monitor MAG401QR, 40" IPS/3440x1440 (UWQHD)/155Hz/1ms/DP/2xHDMI/3xUSB

MKT Spec MAG401QR
Website Name MAG401QR
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 40" (101.6 cm)
Active Display Area (mm) 926.22(H)x387.72(V)
Curvature Flat
Panel Type IPS
Resolution 3440x1440 (UWQHD)
Pixel pitch (mm) 0.2697(H)x0.2697(V)
Aspect Ratio 21:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range 48~155Hz
HDR (High dynamic range) DisplayHDR 400
SDR Brightness (nits) 400
HDR Brightness (Peak nits) 400
Contrast Ratio 1000:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency 30~160 KHz(H) / 60~144 Hz(V)
Refresh Rate 155Hz
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 4ms
Response Time (Tr + Tf) 14ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 103%/86%
NTSC (CIE1931 area percentage/overlap) 88%/81%
sRGB (CIE1976 area percentage/overlap) 118%/99%
sRGB (CIE1931 area percentage/overlap) 124%/99%
Adobe RGB (CIE1976 area percentage/overlap) 101%/90%
Adobe RGB (CIE1931 area percentage/overlap) 92%/82%
DCI-P3 (CIE1976 area percentage/overlap) 95%/94%
DCI-P3 (CIE1931 area percentage/overlap) 91%/91%
Rec.709 (CIE1976 area percentage/overlap) 118%/99%
Rec.709 (CIE1931 area percentage/overlap) 124%/99%
Rec.2020 (CIE1976 area percentage/overlap) 68%/68%
Rec.2020 (CIE1931 area percentage/overlap) 65%/65%
Quantum Dot NA
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits (8 bits + FRC)
Note_DP 3440X1440 (Up to 155Hz)
Note_HDMI 3440 x 1440 (Up to 100Hz)
Note_DVI N/A
I/O Ports
HDMI 2
HDMI version 2.0
HDMI HDCP version 2.2
DisplayPort 1
DisplayPort version 1.4a
DisplayPort HDCP version 2.2
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A 2
USB 2.0 Type B 1
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader N/A
Lock type Kensington Lock
Speaker NA
Webcam NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type Power Cable
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 39
Annual Energy Consumption (KWh) 39
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating F
Adapter"s KC safety Number N/A
Power Cord Type C13
QC Output NA
QC Output Power N/A
PD Output Type C
PD Output Power 65W
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) NA
Adjustment (Height) NA
Adjustment (Pivot) NA
VESA Mounting 100x100mm
Frameless Design Yes
Carton
Carton Item (SG14) SG14-M1S156A-MNT
pcs/Carton 1
Pallet
pallet Q"ty (by air) pcs 14
Q"ty/20cy (by air) pcs 140
Q"ty/40cy (by air) pcs 294
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1490
Net Weight (by air) kg 144.2
Gross Weight (by air) kg 193.6
pallet Q"ty (by sea) pcs 24
Q"ty/20cy (by sea) pcs 240
Q"ty/40cy (by sea) pcs 504
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2210
Net Weight (by sea) kg 247.2
Gross Weight (by sea) kg 317.6
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 945.22 x 289.63 x 530.29
Product Dimension with Stand (WxDxH) (inch) 37.21 x 11.4 x 20.88
Product Dimension without Stand (WxDxH) (mm) 945.22 x 83.32 x 416.12
Product Dimension without Stand (WxDxH) (inch) 37.21 x 3.28 x 16.38
Stand Dimension (WxDxH) (mm) 672.42 x 289.63 x 386.56
Stand Dimension (WxDxH) (inch) 26.47 x 11.4 x 15.22
Weight (Net kg) 10.3
Weight (Net lbs) 22.71
Weight Without Stand (kg) 8
Weight Without Stand (lbs) 17.64
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) N/A
Inside Carton Dimension (WxDxH) (inch) N/A
Outer Carton Dimension (WxDxH) (cm) N/A
Outer Carton Dimension (WxDxH) (inch) N/A
Weight (Gross kg) 12.4
Weight (Gross lbs) 27.34
Accessories
DisplayPort Cable 1
HDMI Cable 0
DVI Cable 0
USB Type A to Type B Cable 1
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 4
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Series Name Gaming
Segment Name MAG
Segment Name2 MAG401
Segment Name3 MAG401QR
Barcode Info
EAN 4711377080514
