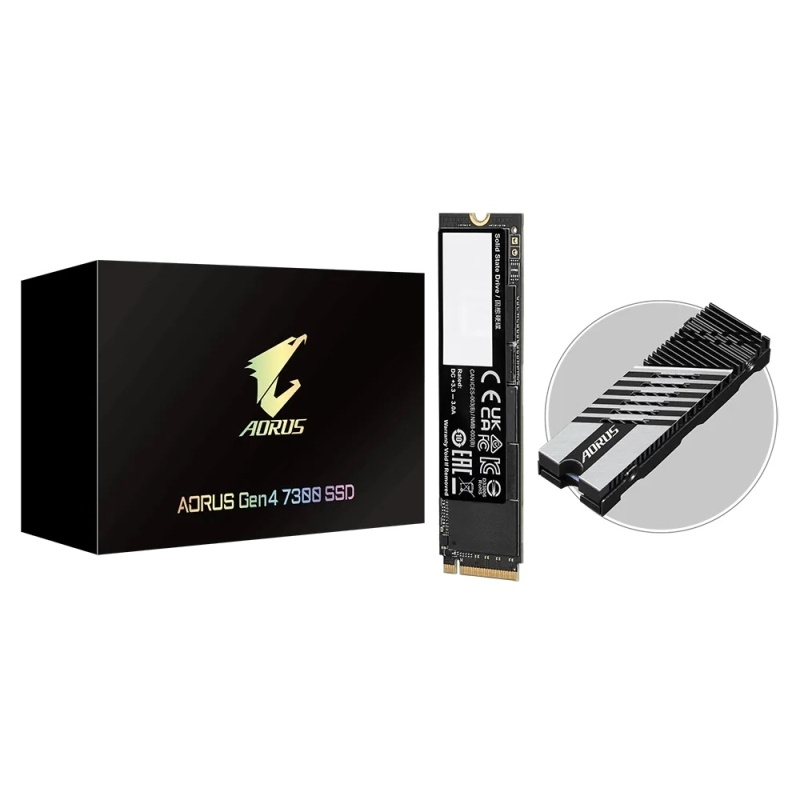

Gigabyte AORUS Gen4 7300 SSD 2TB

Interface
PCI-Express 4.0 x4, NVMe 1.4
Form Factor
M.2 2280
Total Capacity
2000GB
NAND
3D TLC NAND Flash
External DDR Cache
DDR4L 2GB
Sequential Read speed
Up to 7300 MB/s
Sequential Write speed
Up to 6850 MB/s
Dimension
80 x 22 x 2.3 mm (with heatsink: 80.5 x 11.25 x 23.5 mm)
Mean time between failure (MTBF)
1.6 million hours
Power Consumption (Active)
Average: R : 8.1W, W : 7.4W
Power Consumption(Idle)(ASPT on)
<30mW
Temperature (Operating)
0°C to 70°C
Temperature (Storage)
-40°C to 85°C
Warranty
1. Limited 5-years or 1400TBW.
2. Limited warranty based on 5 years or 1400TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
Note
• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD"s firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.
Test Configuration
OS: Windows 11 22H2 (OS build 22621.819)
CPU: AMD Ryzen 9 7950X 16-Core Processor 4.5G
Memory: DDR5 5600 16GBx2
Chipset: AM5 X670 (X670E AORUS MASTER)
